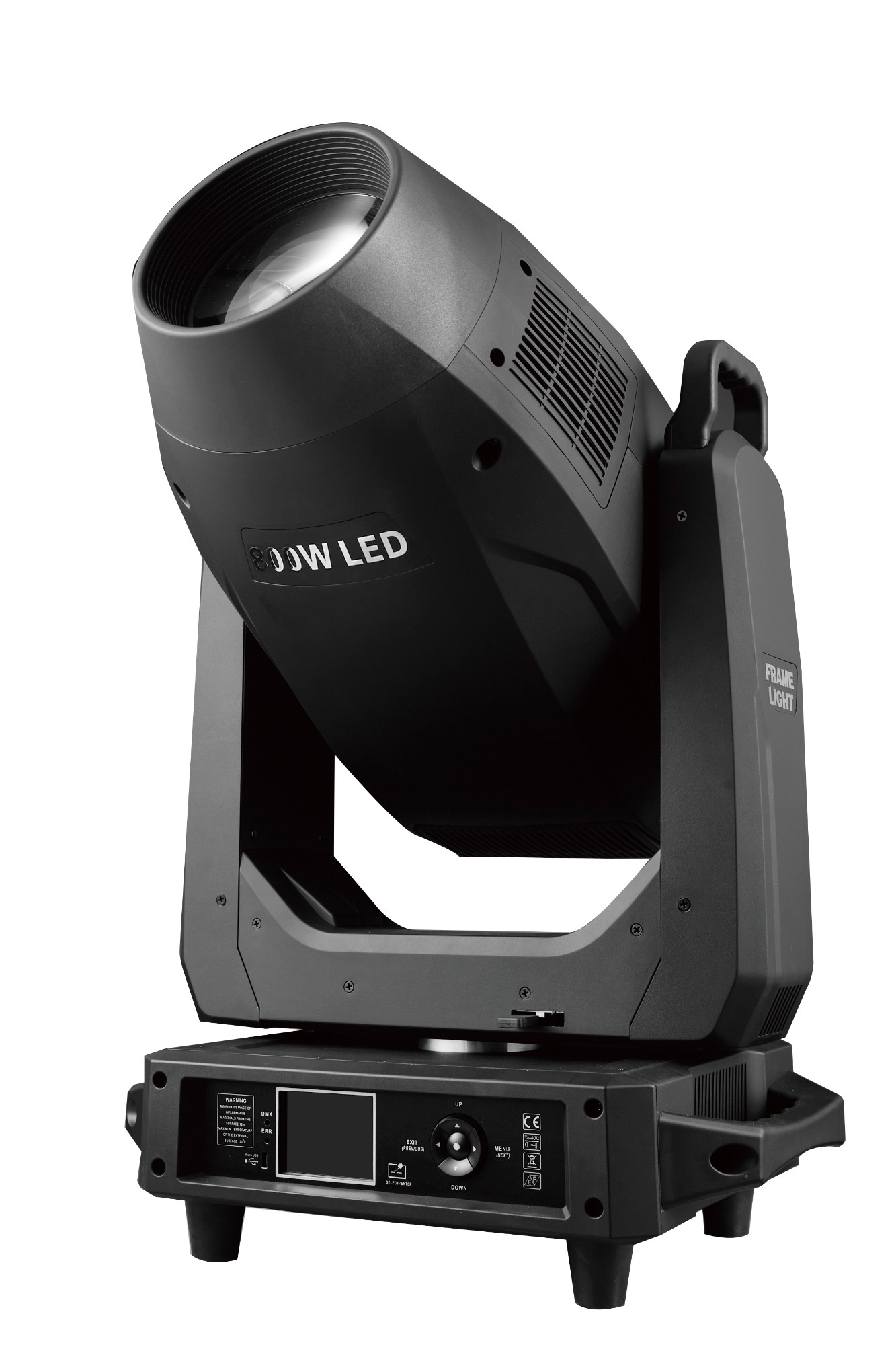

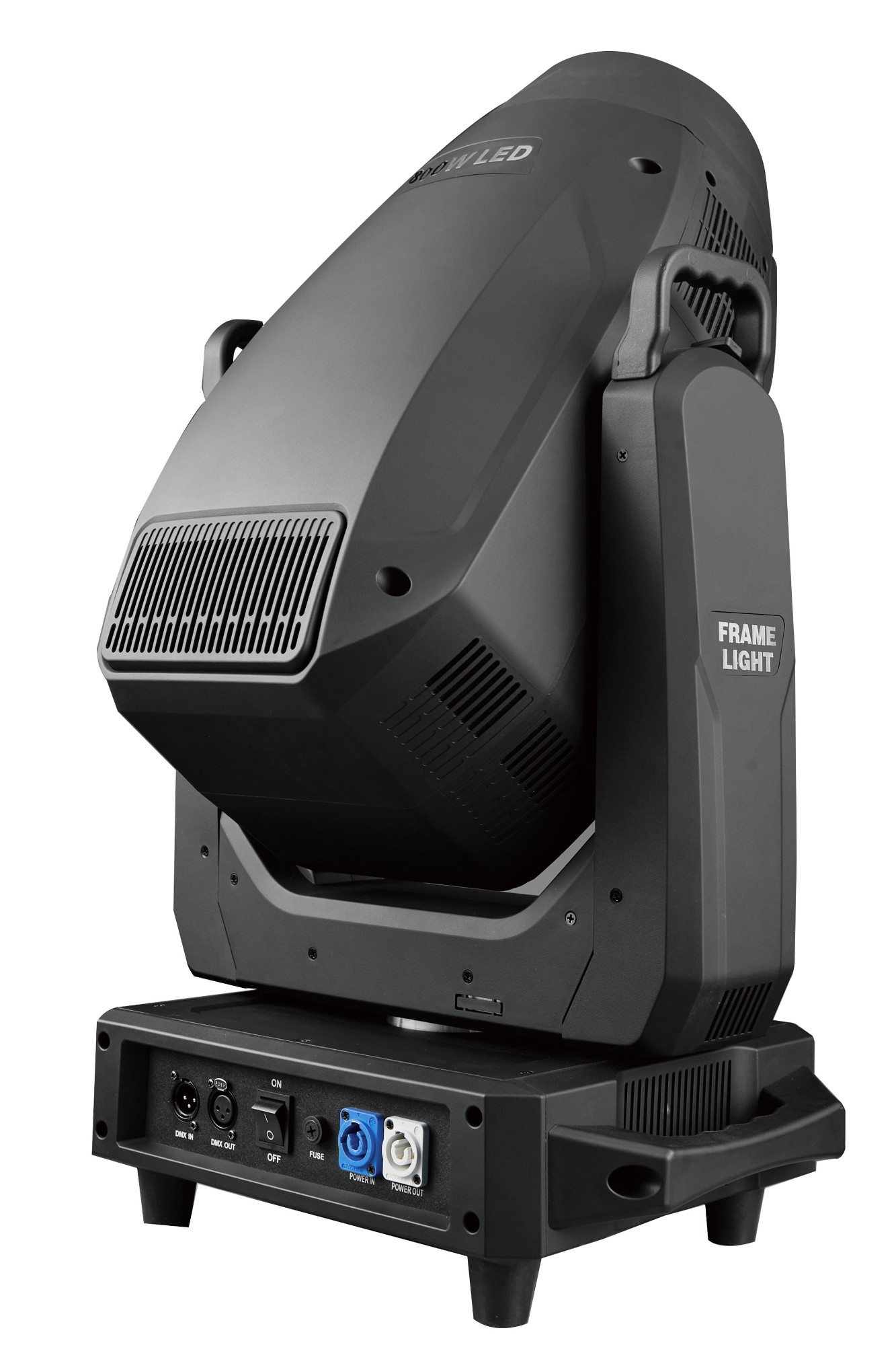

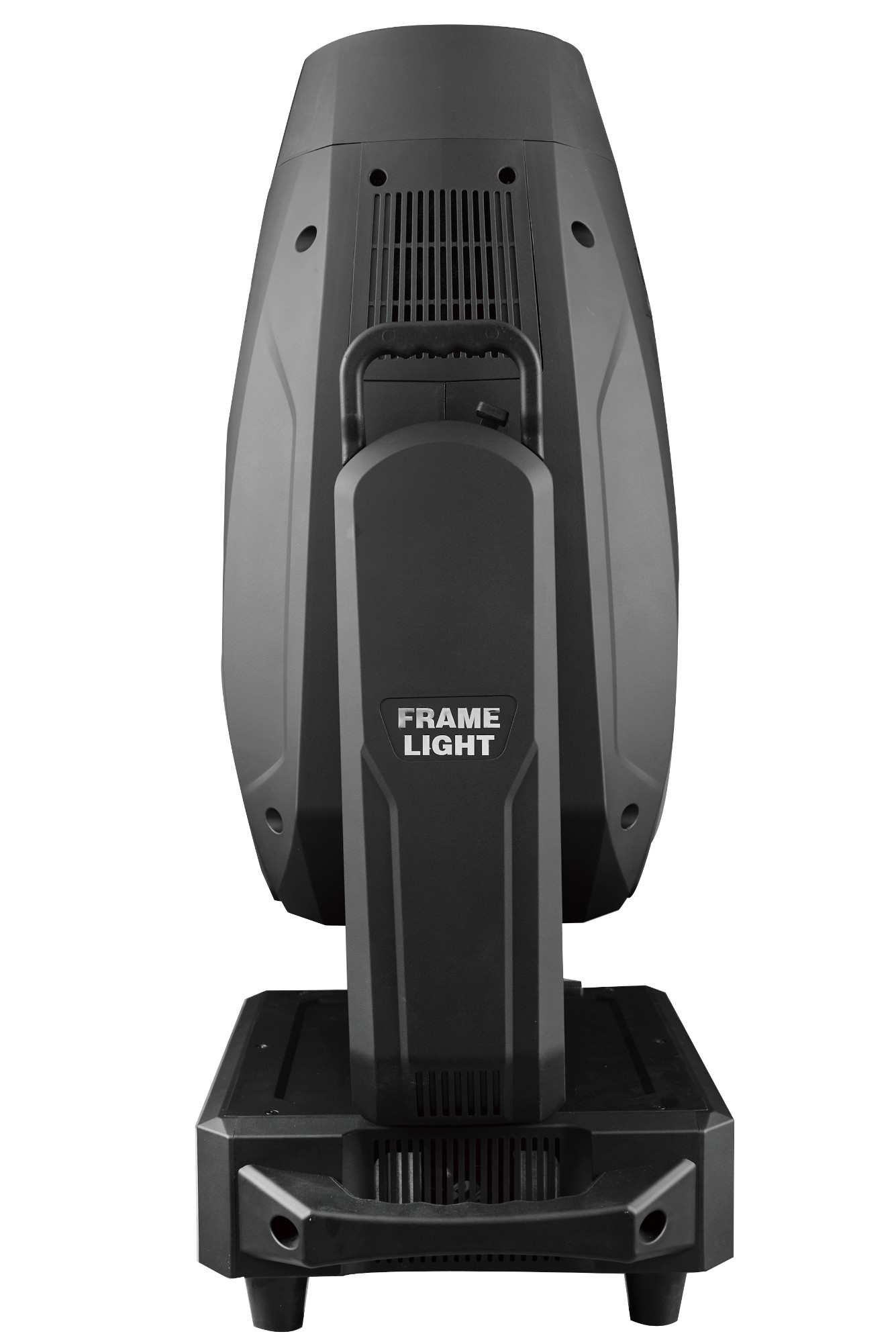

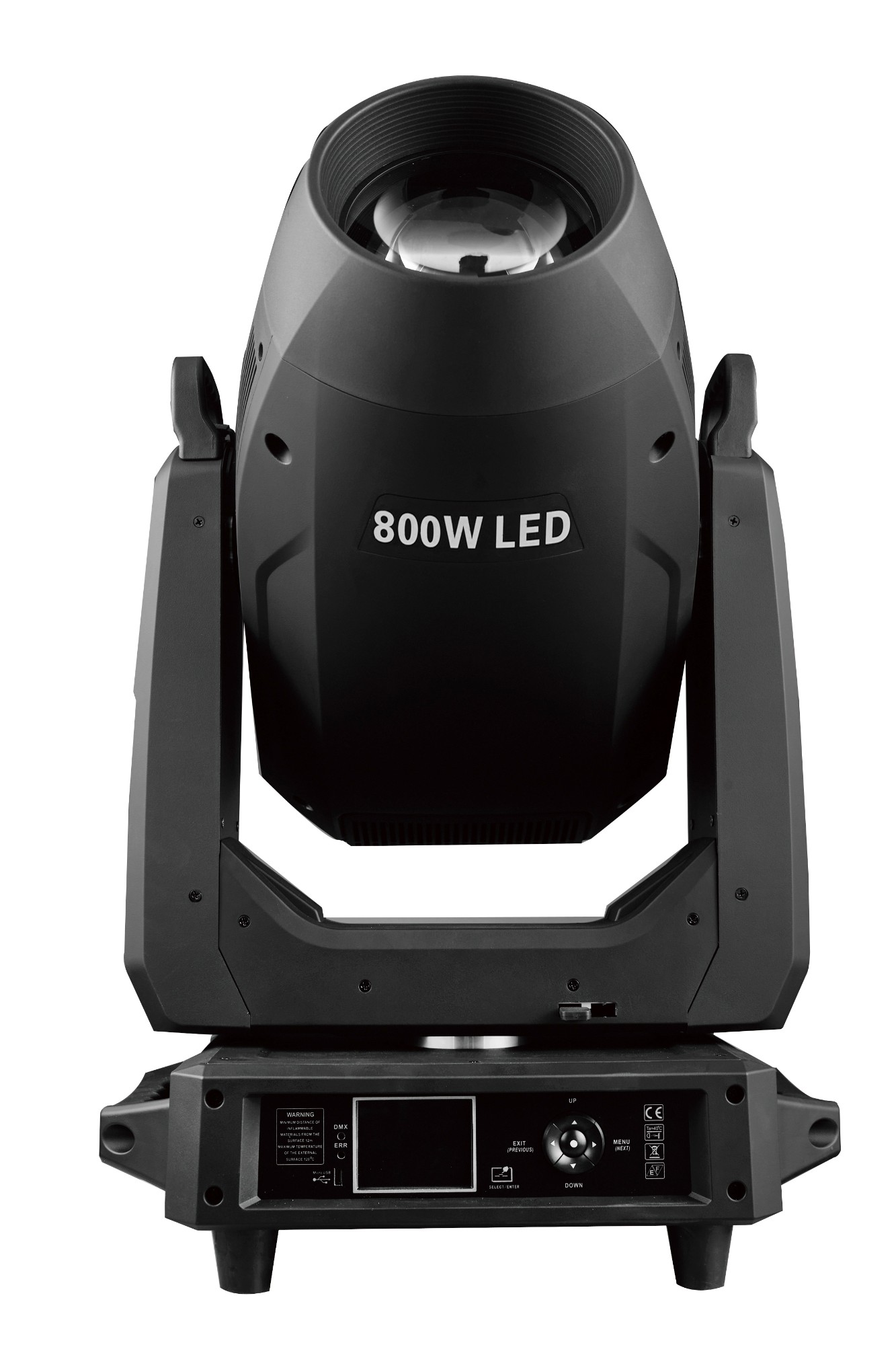

LED MINI 800W BEAM SPOT WASH PROFILE 4IN1 MOVER

LED MINI 800W LED BEAM SPOT WASH PROFILE 4IN1 MOVER

Input voltage: AC100-240V, 50/60Hz

Rated power: 1150W

Light source: 800W LED module

LED life: 20,000 hours

Color temperature: 6500K

Caliber: 138mm Frontal lens for greater performance

Color rendering index: Standard mode Ra>75, high CRI mode Ra>90

Luminous flux:24000LM

Signal interface: three-pin XLR (five-pin XLR optional)

Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation

Channel mode: 36CH、42CH、60CH、41CHSame channel as Martin profile（choosable）

Display system: 2.8-inch touch LCD display, Chinese and English display, 180-degree rotation

Fixed color: 6 colors + open position

Color mixing system: independent CMY color mixing system

Color temperature adjustment: independent CTO 2500K-7000K linear adjustment

Prisms: Rotating 4-faced prism+6-faced linear prism, two prisms can be overlaid

Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.

Fixed Gobo wheel: 7 plug-in fixed gobos with an outer Rotating gobo Wheel: 8 gobos (pluggable),

Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°

Frost system: 0~100% linear atomization

Iris system: 6%~100% smooth adjustment

Beam Aperture: 5°~50° fast motorized linear zoom

Dimming system: 0-100% linear adjustment

Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected

Pan: 540° (16 bit precision scanning)

Tilt: 270° (16 bit precision scanning)

Pan/Tilt: Five-phase motor with magnetic encoding positioning function

Protection rate: IP20

Working environment: 0-45℃

Product net weight: 30KG

Carton size：79.5*36.5*50.5

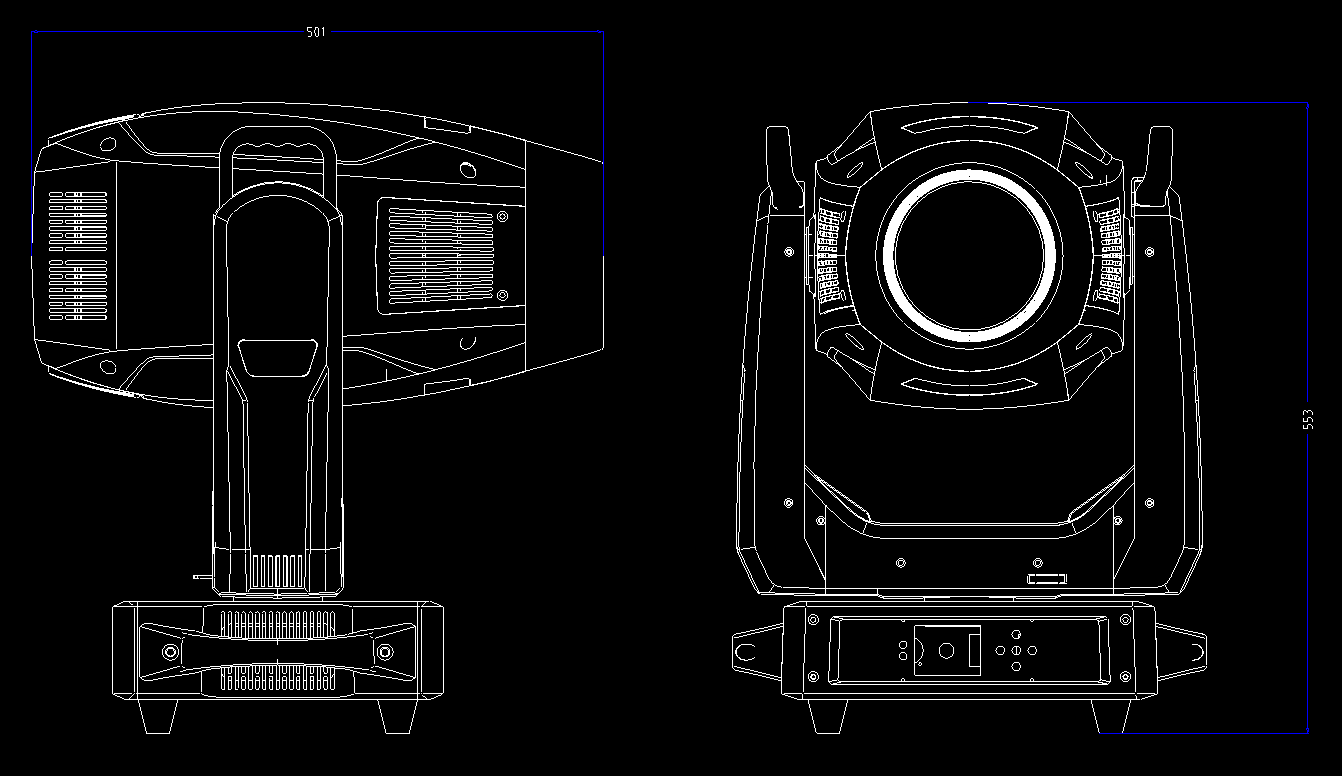

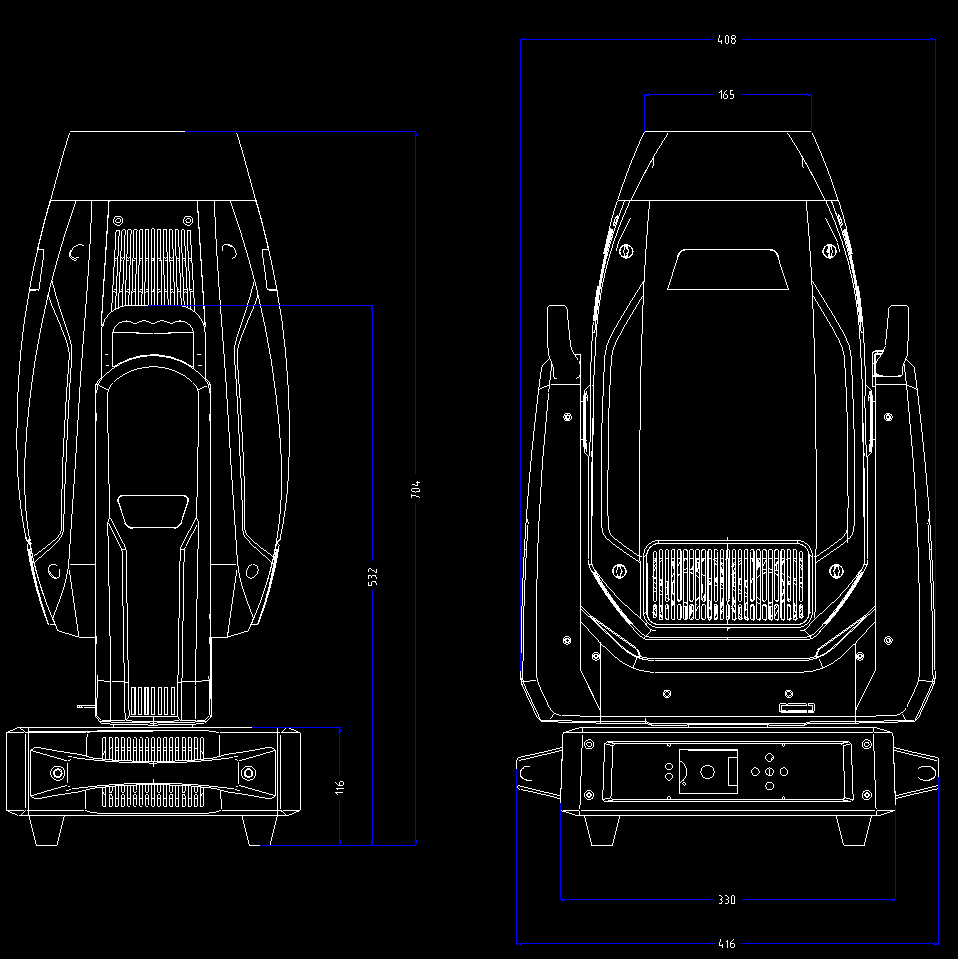

Fixture Dimension

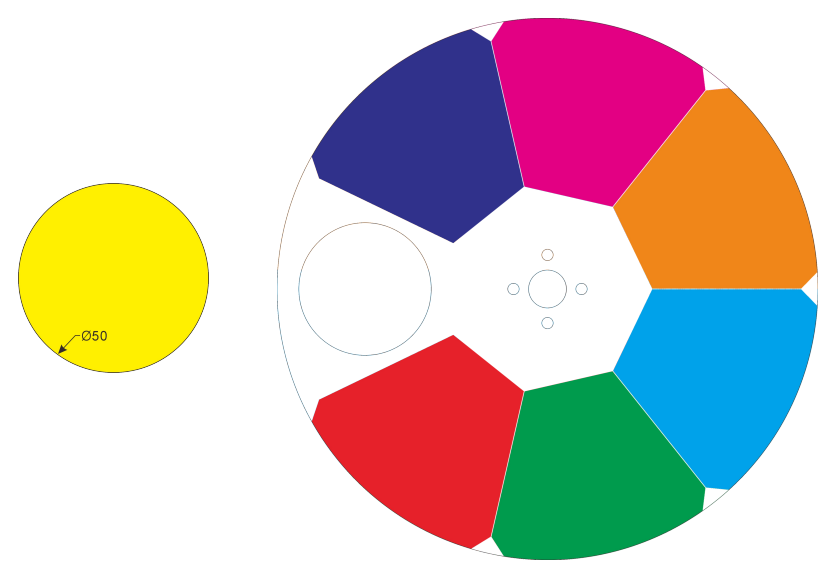

Color Wheel

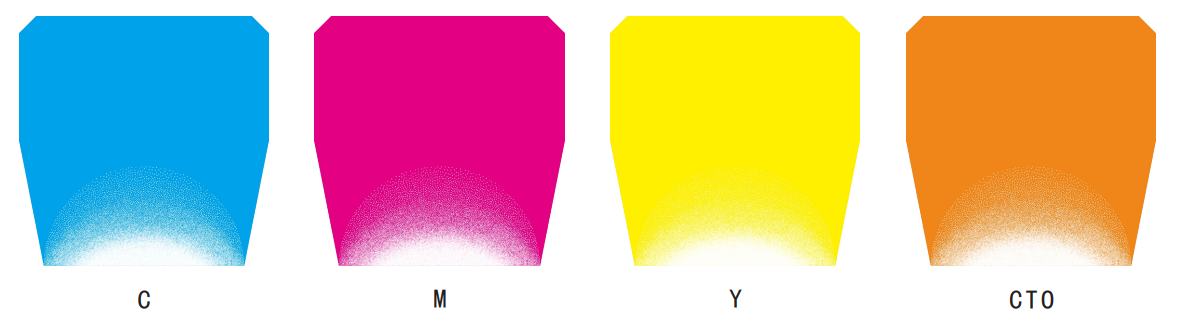

CMY+CTO

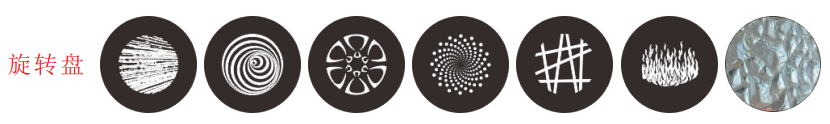

Rotating Gobo Wheel

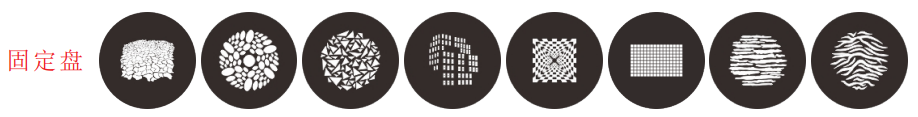

Fixed Gobo Wheel

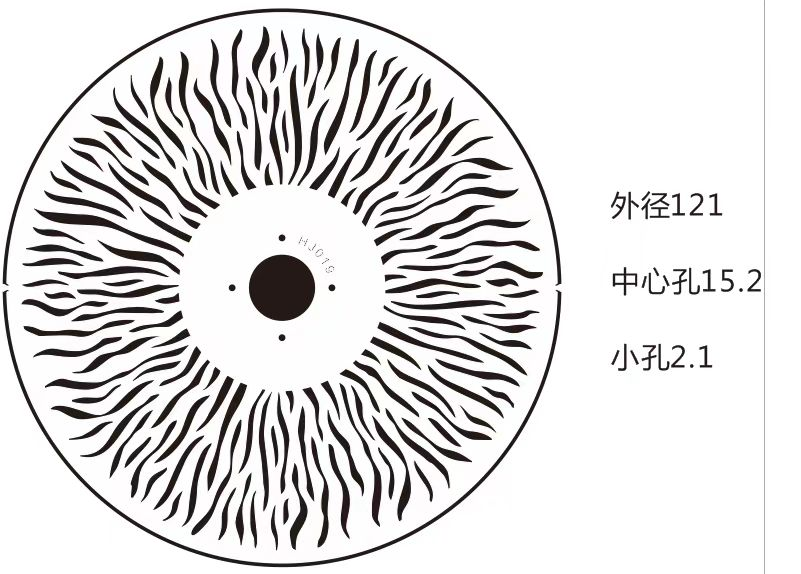

Effect Flame Wheel

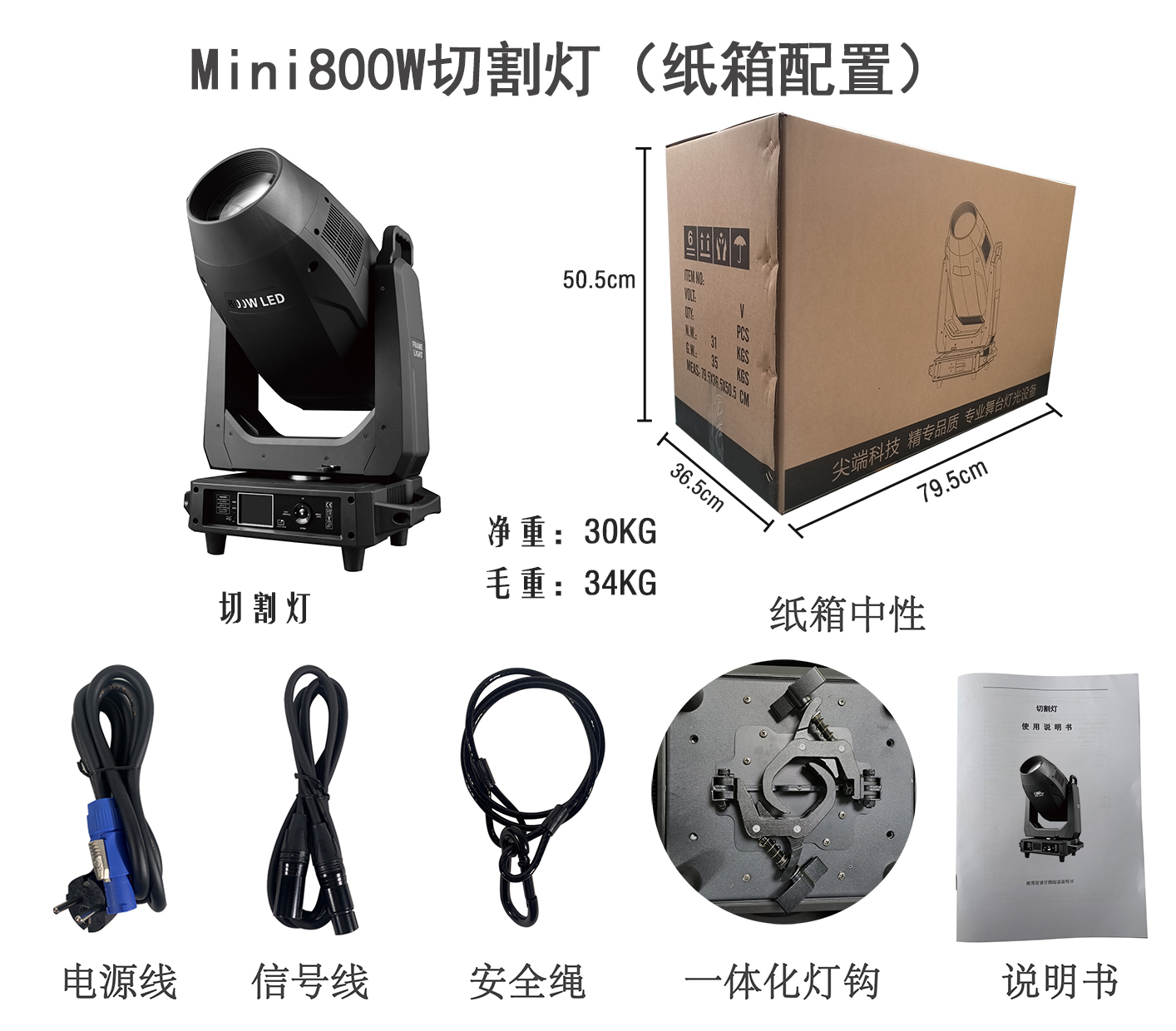

Carton Packing

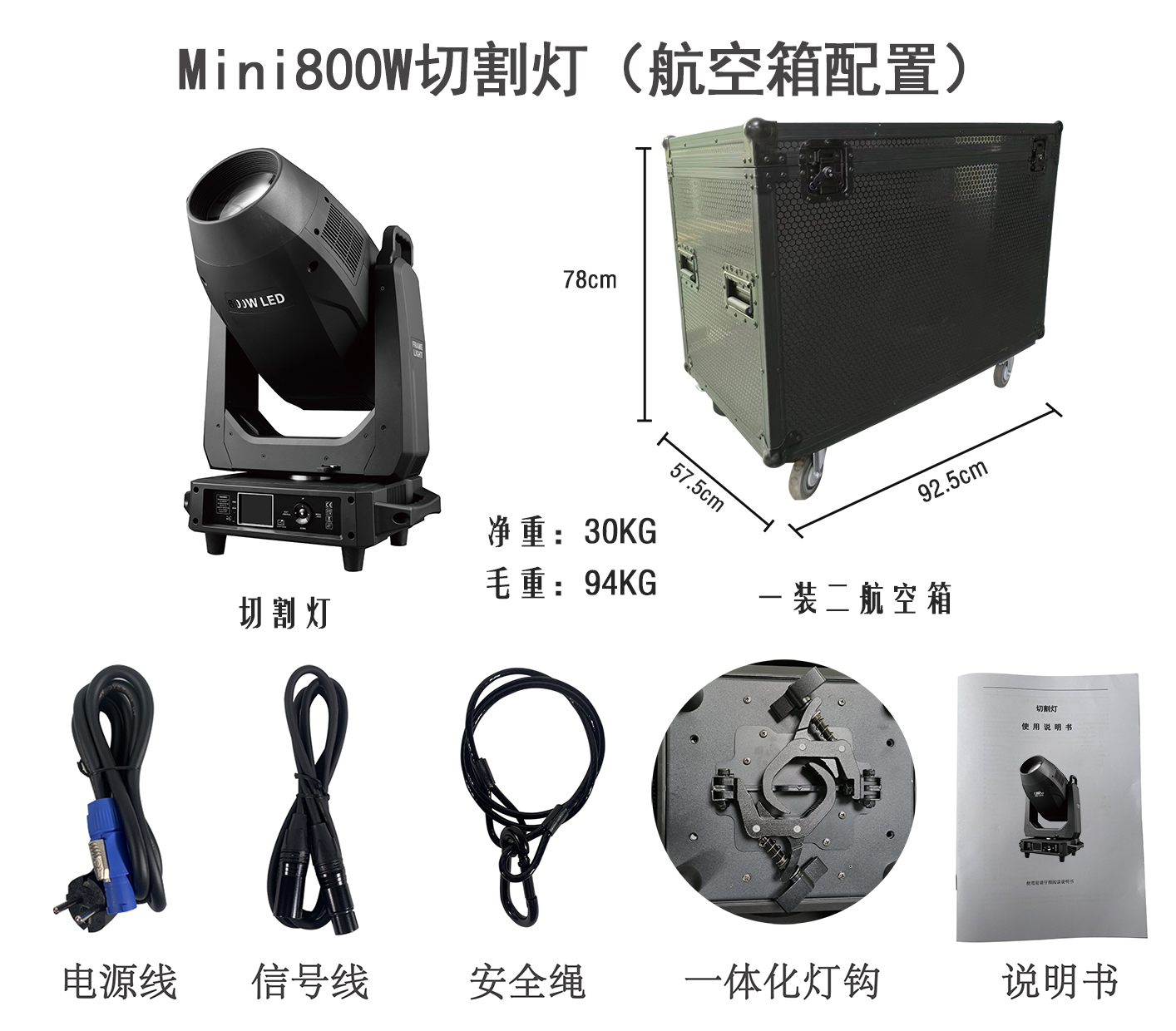

Dual Case Packing
