10W LASER MOVER WITH BEAM WASH EFFECT

0W LASER MOVER WITH BEAM WASH EFFECT

EMAIL

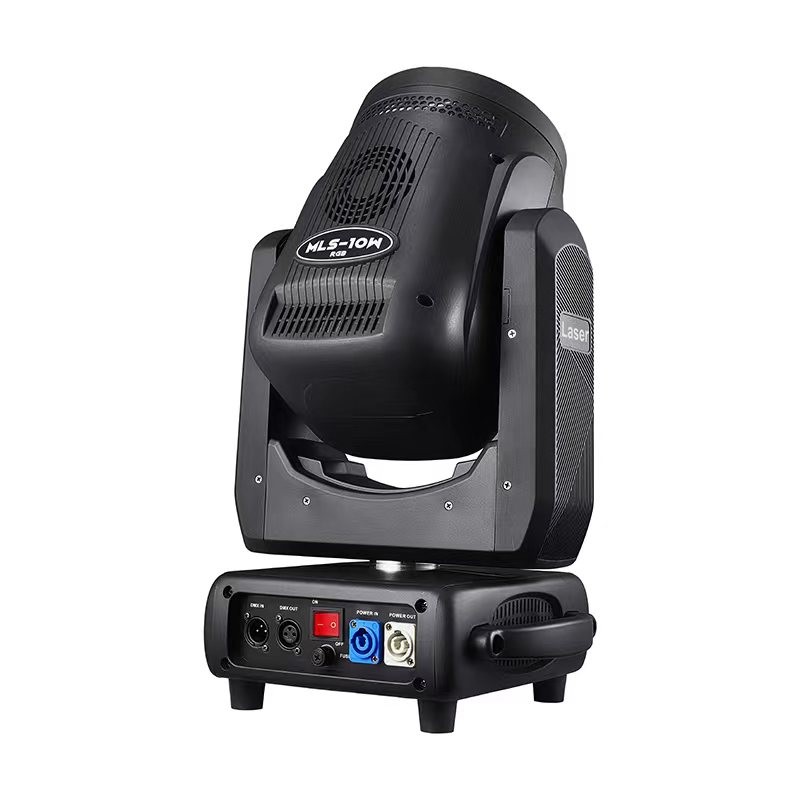

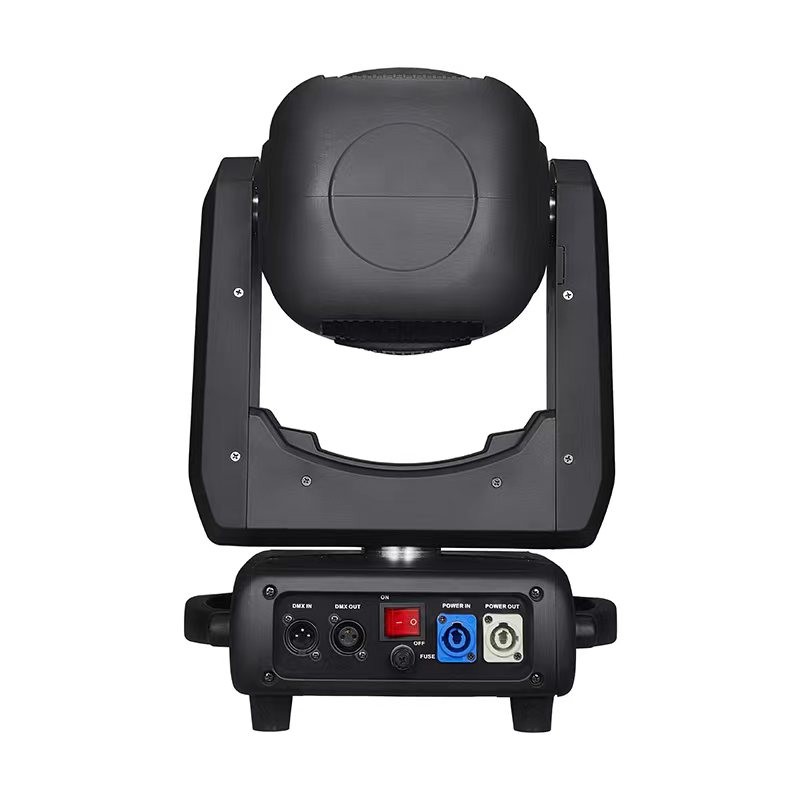

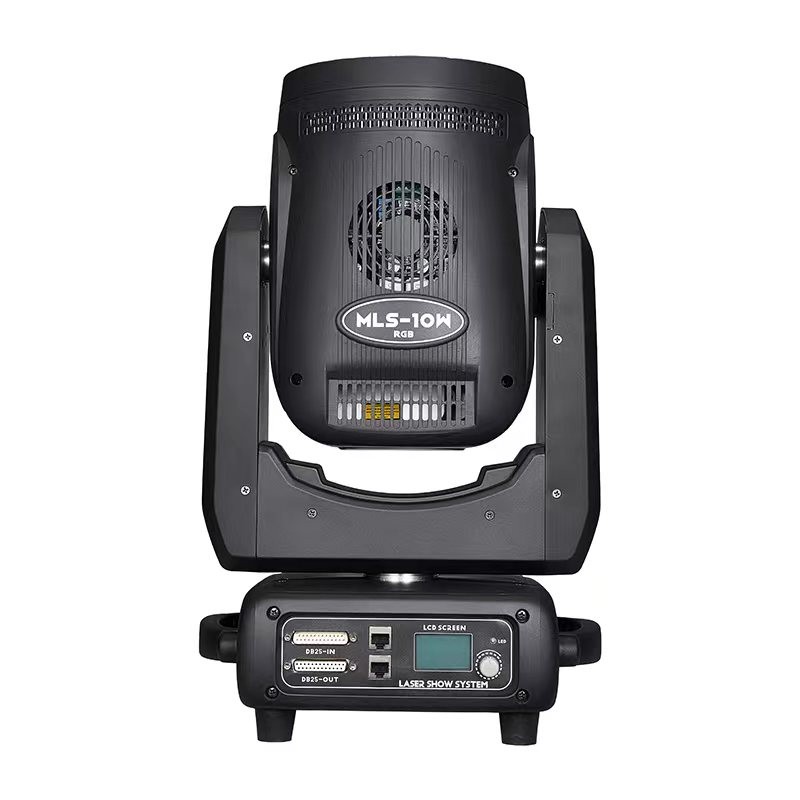

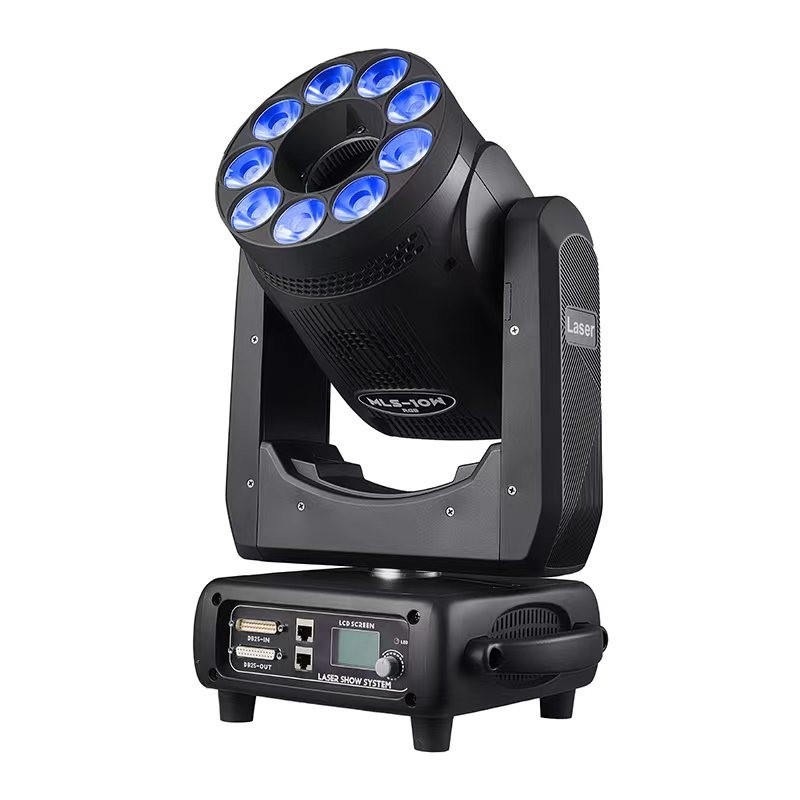

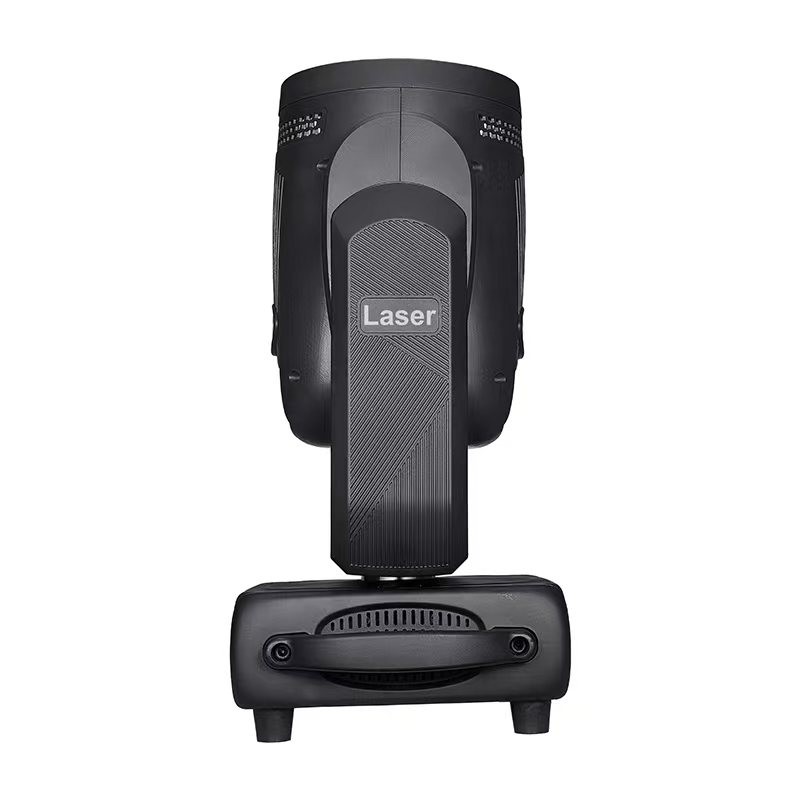

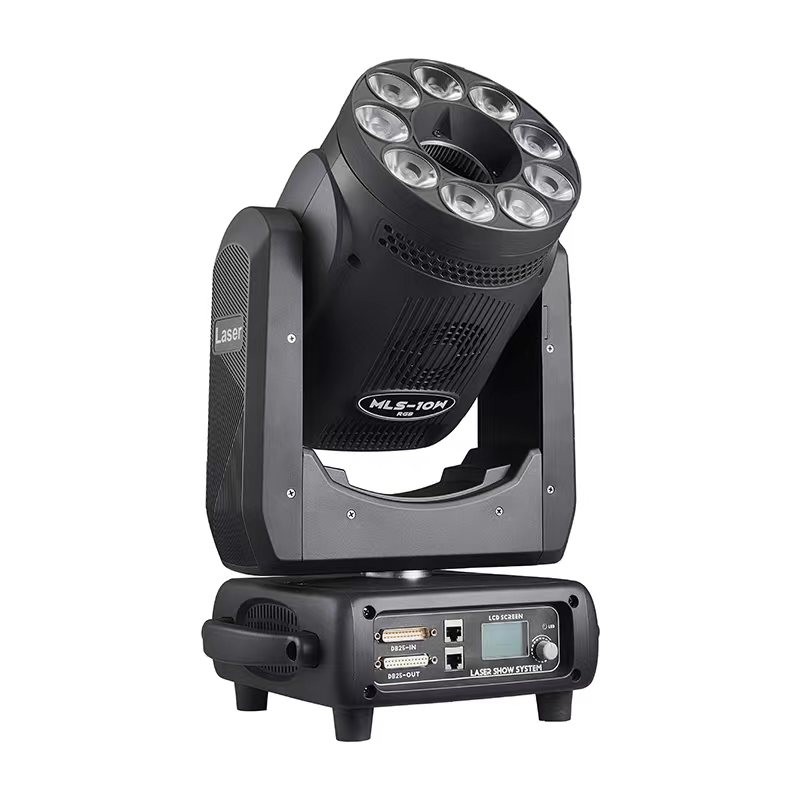

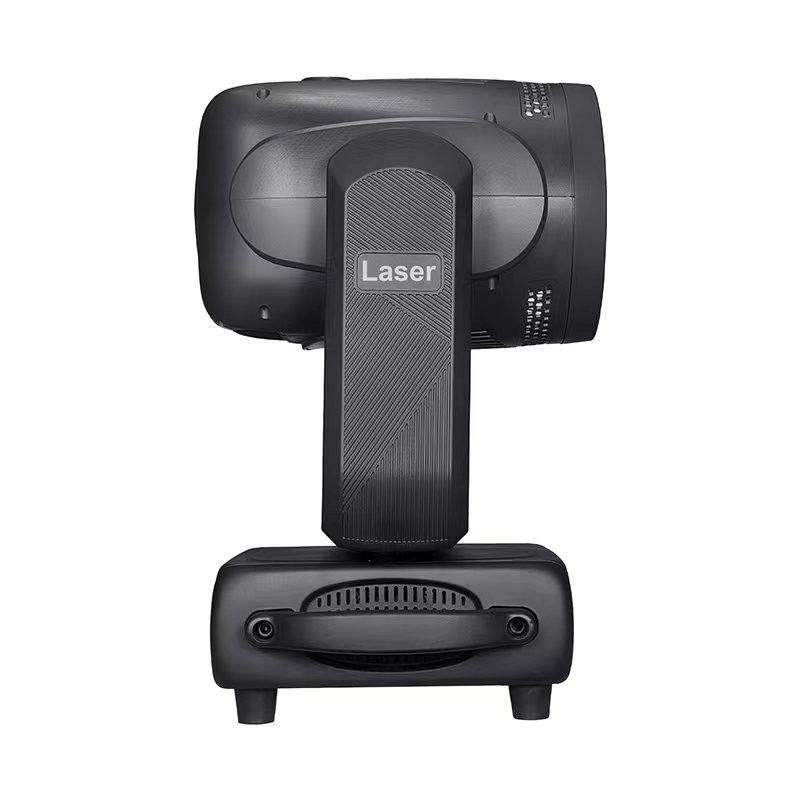

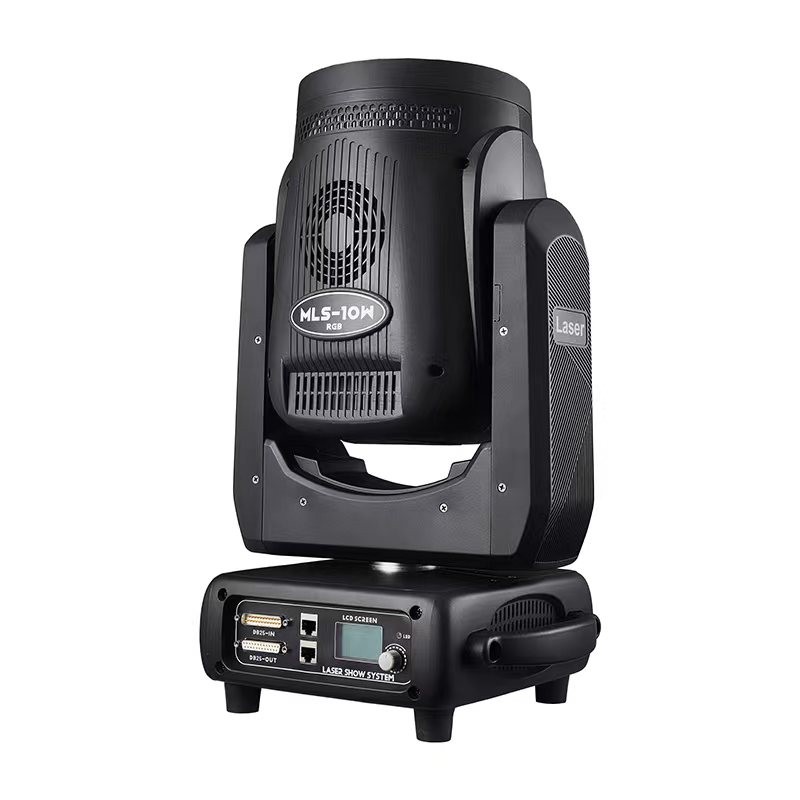

10W Laser Moving Head with Wash Effect

Rated voltage: AC110-220V

Shaking head laser +LED dye light

Rated frequency: 50 ~ 60Hz

Rated power: 300W

Laser color: RGB full color

Laser power: RGB 10W

Laser light source: R3w/638nm G3w/525nm B4w/447nm

Laser pattern: 256 laser animation pattern

Modulation signal: TTL modulation (analog modulation)

Scanning system: galvanometer scan 30KPPS

Scanning Angle: plus or minus 20 degrees

Stepper motor: two phase 57 motor 2

Horizontal: 540 degrees Vertical: 270 degrees

LED dyeing configuration: 9 20W four-in-one high brightness LED lamp beads

Control mode: DMX512, voice control, self-walking, computer ILDA interface, cable Art-Net,

Control channels: 30 DMX512 control channels

DMX special effects: single pattern mode, can be broken pen, stroboscopic, rotating, moving, tumbling, subgraph, gradually drawing, color change, change the size and other functions.

Function: Pangolin QSFB3/FB4 or fire Phoenix laser software control.

ilda control uses an automatic electronic transfer switch with scanning system error protection and laser light protection.

Notice for use: The ambient temperature is controlled at 0~35 ° C, and the dry and dust-less environment can reduce the laser power attenuation and extend the life of the lamp

Suitable place: disco bar, bar, nightclub, concert, advertising promotion, etc

Cooling system: fan forced cooling
