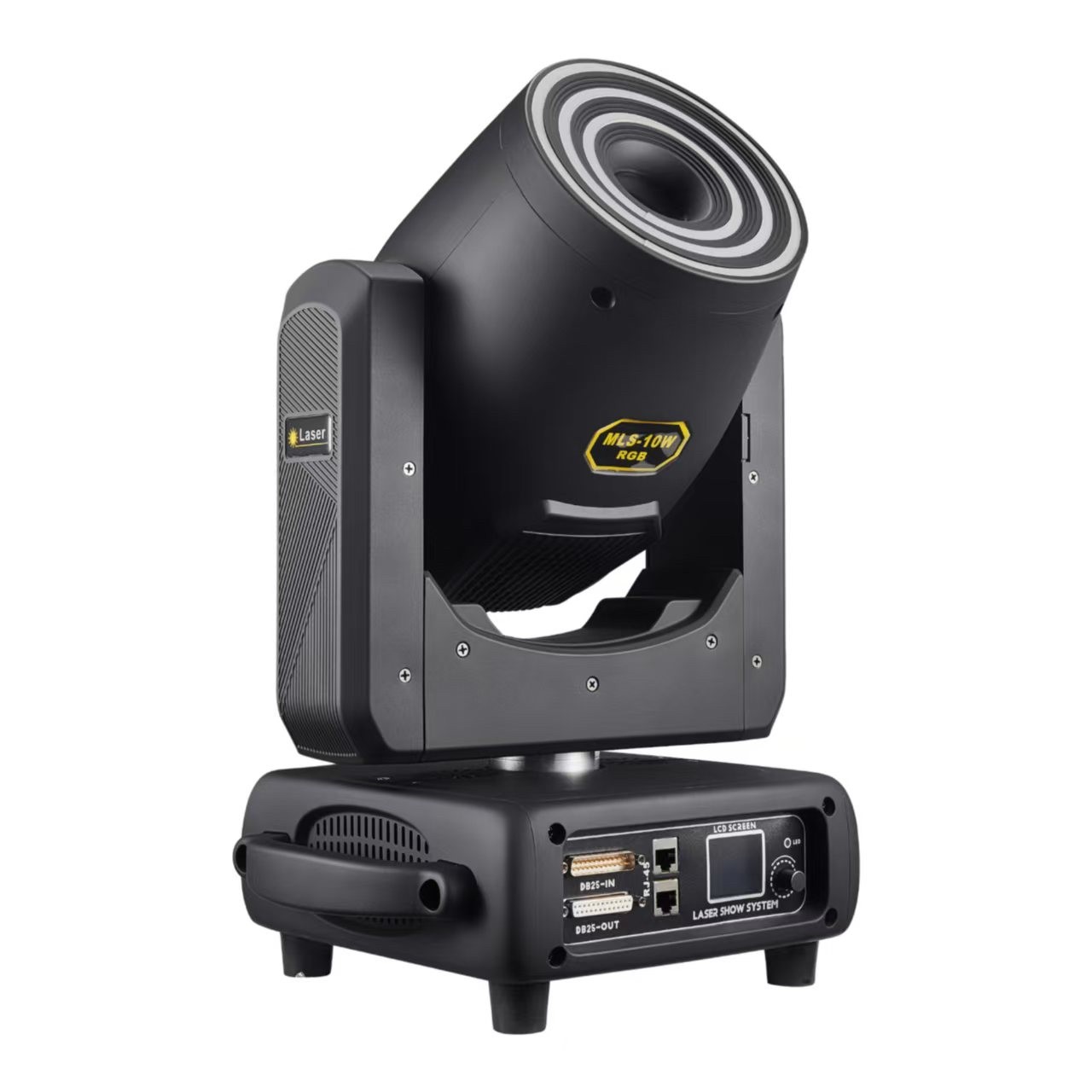

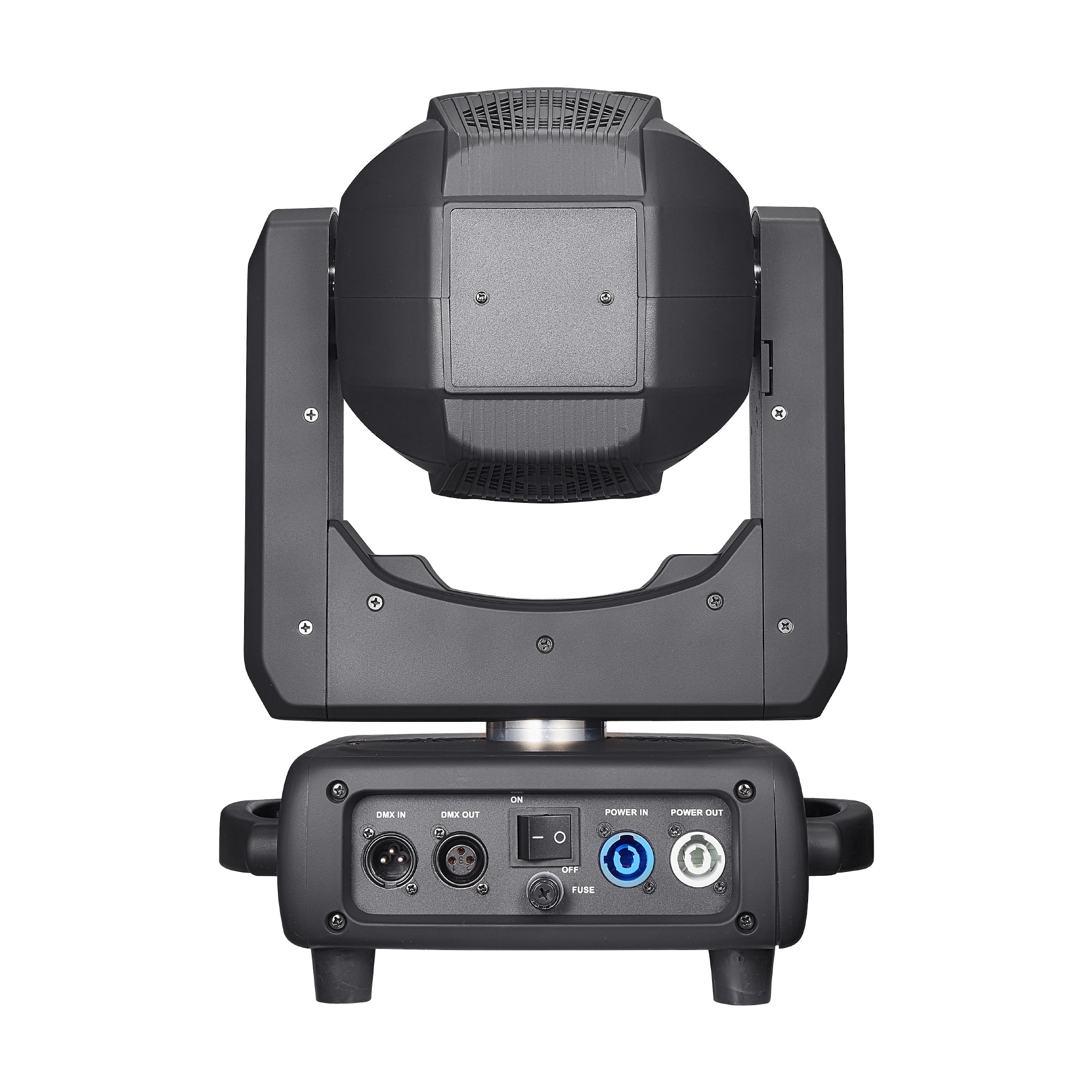

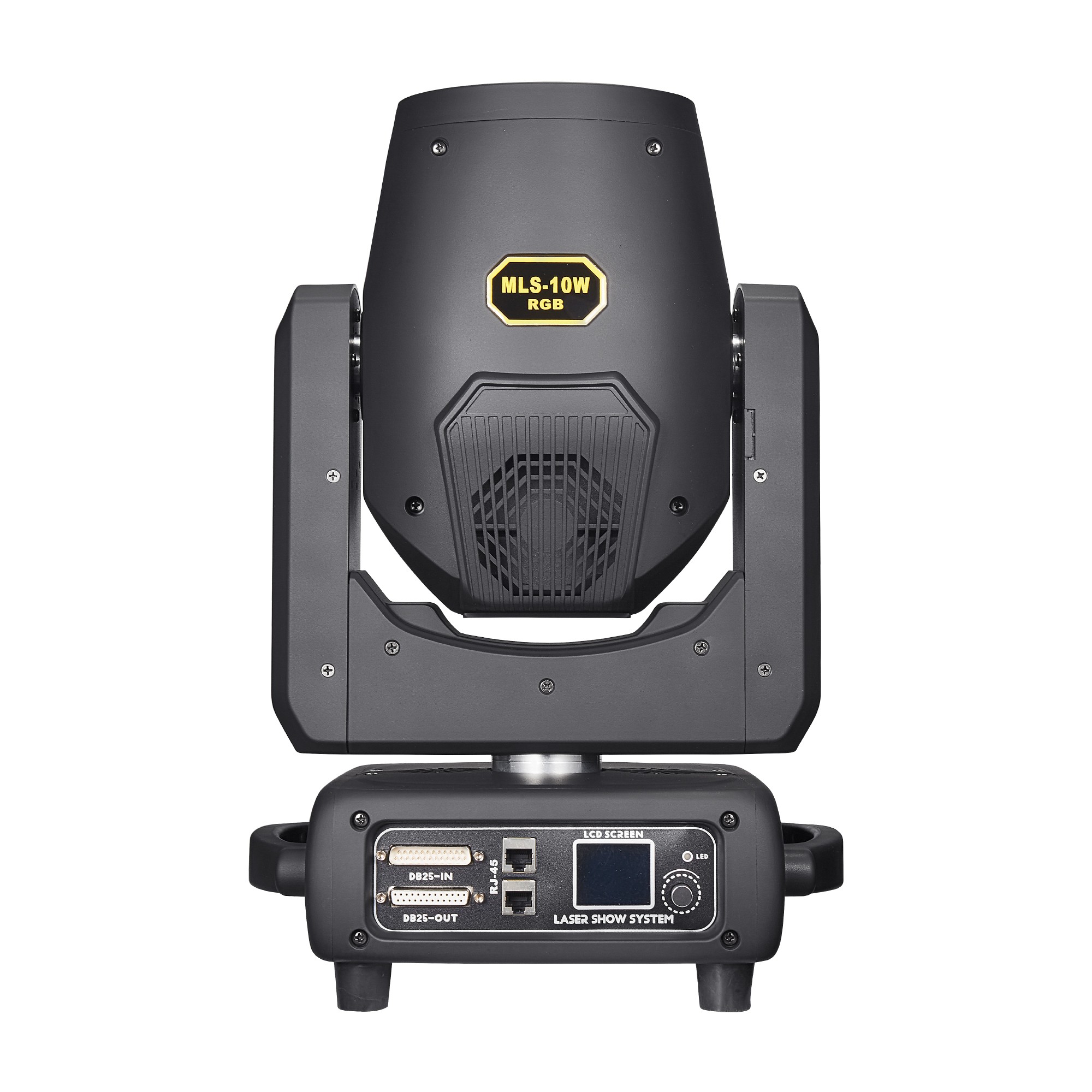

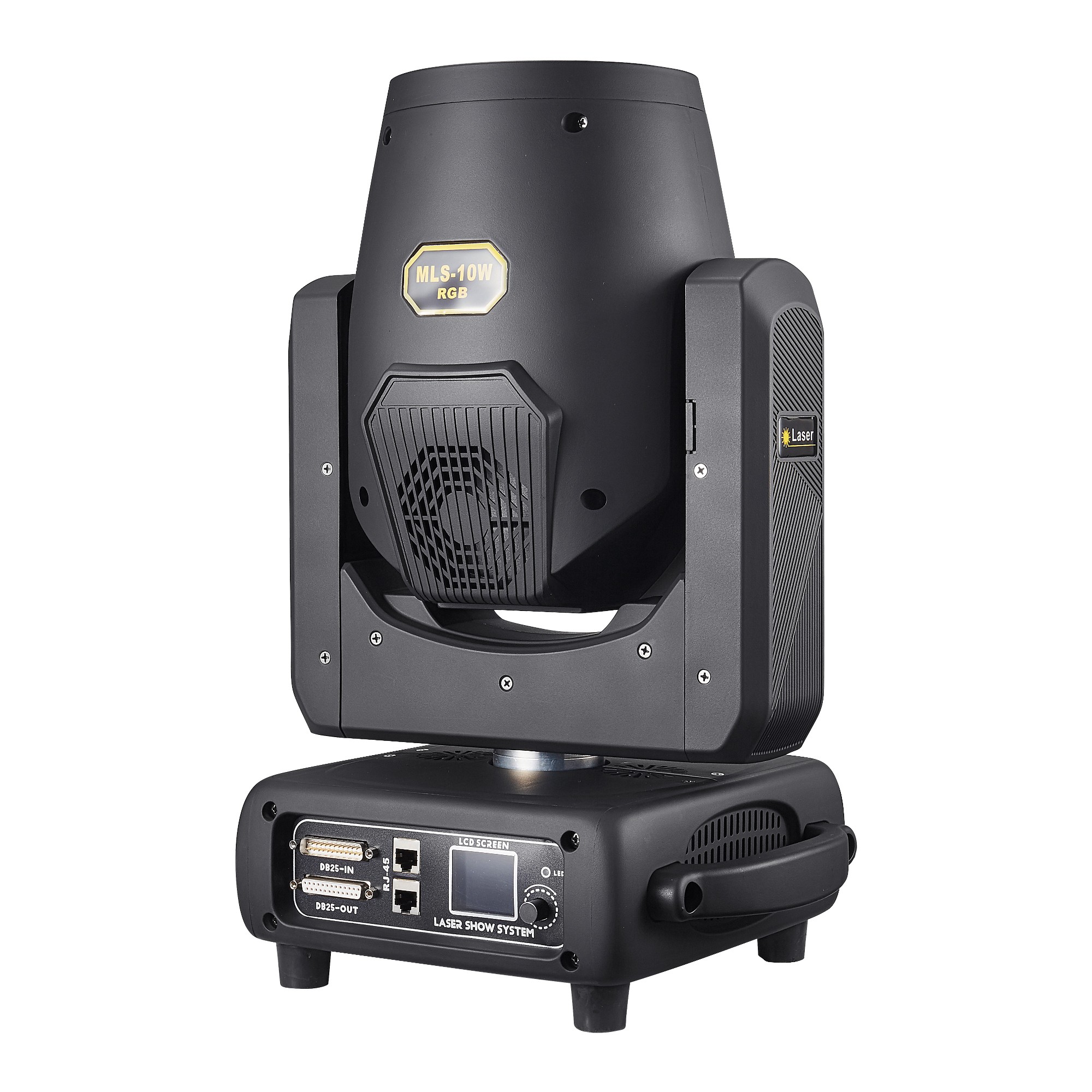

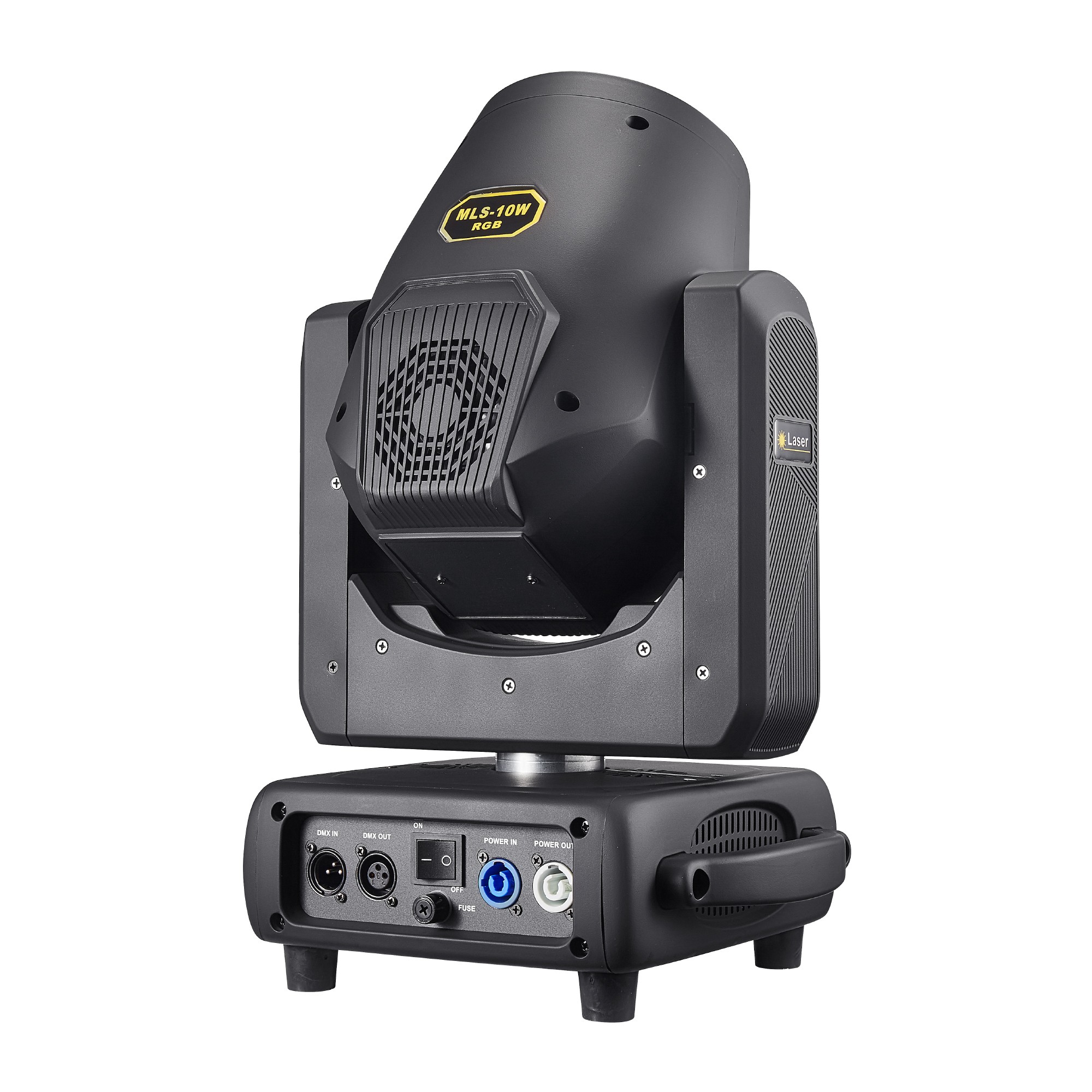

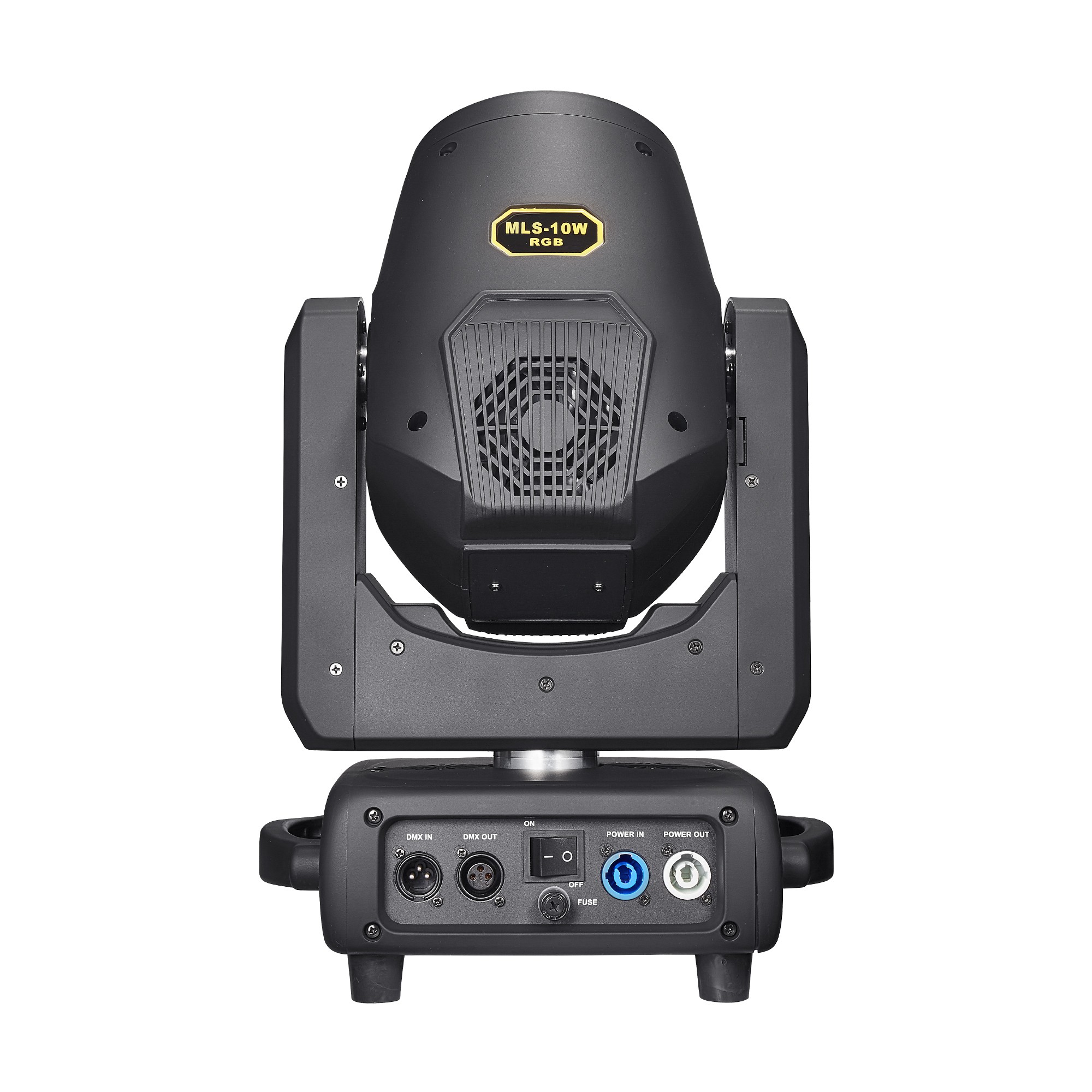

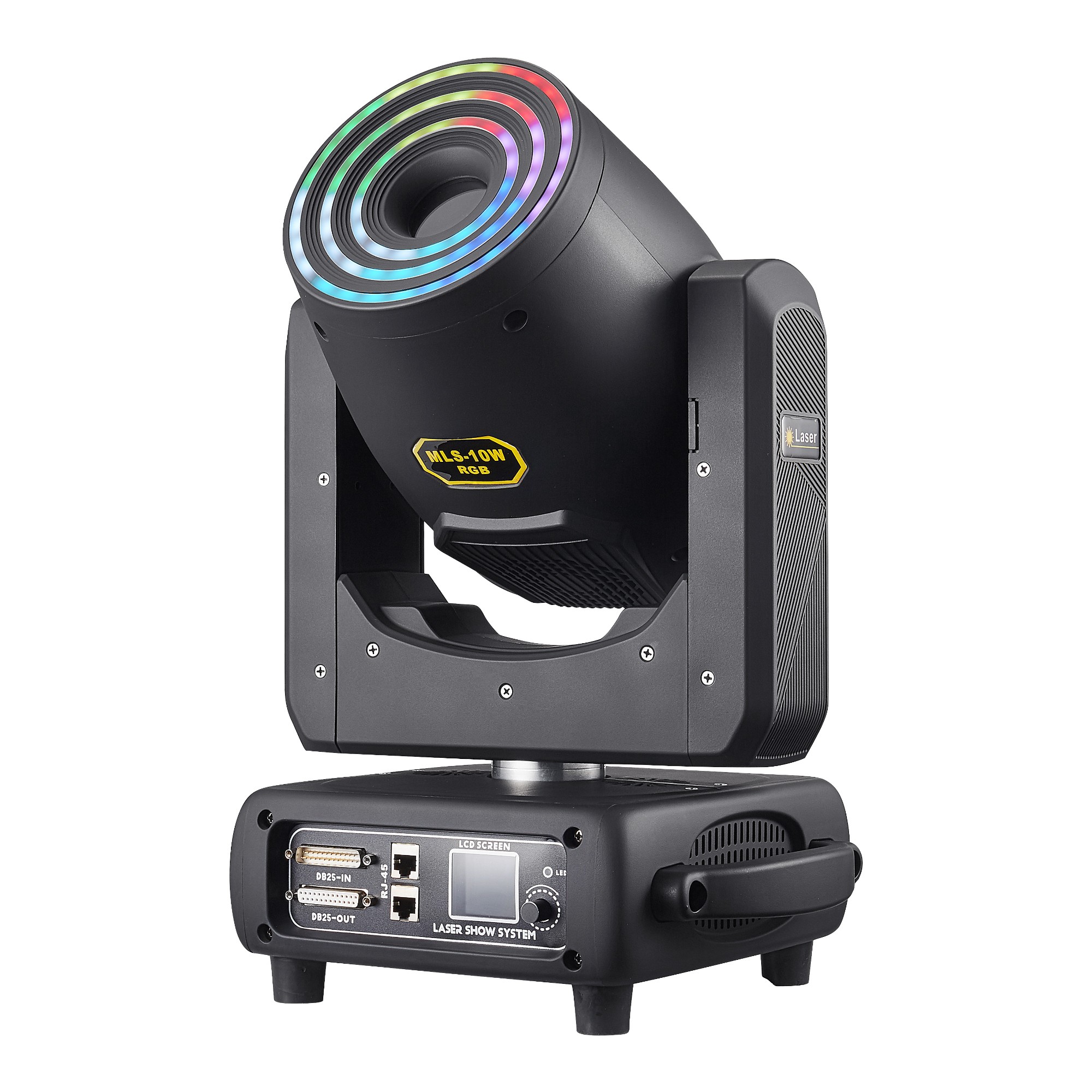

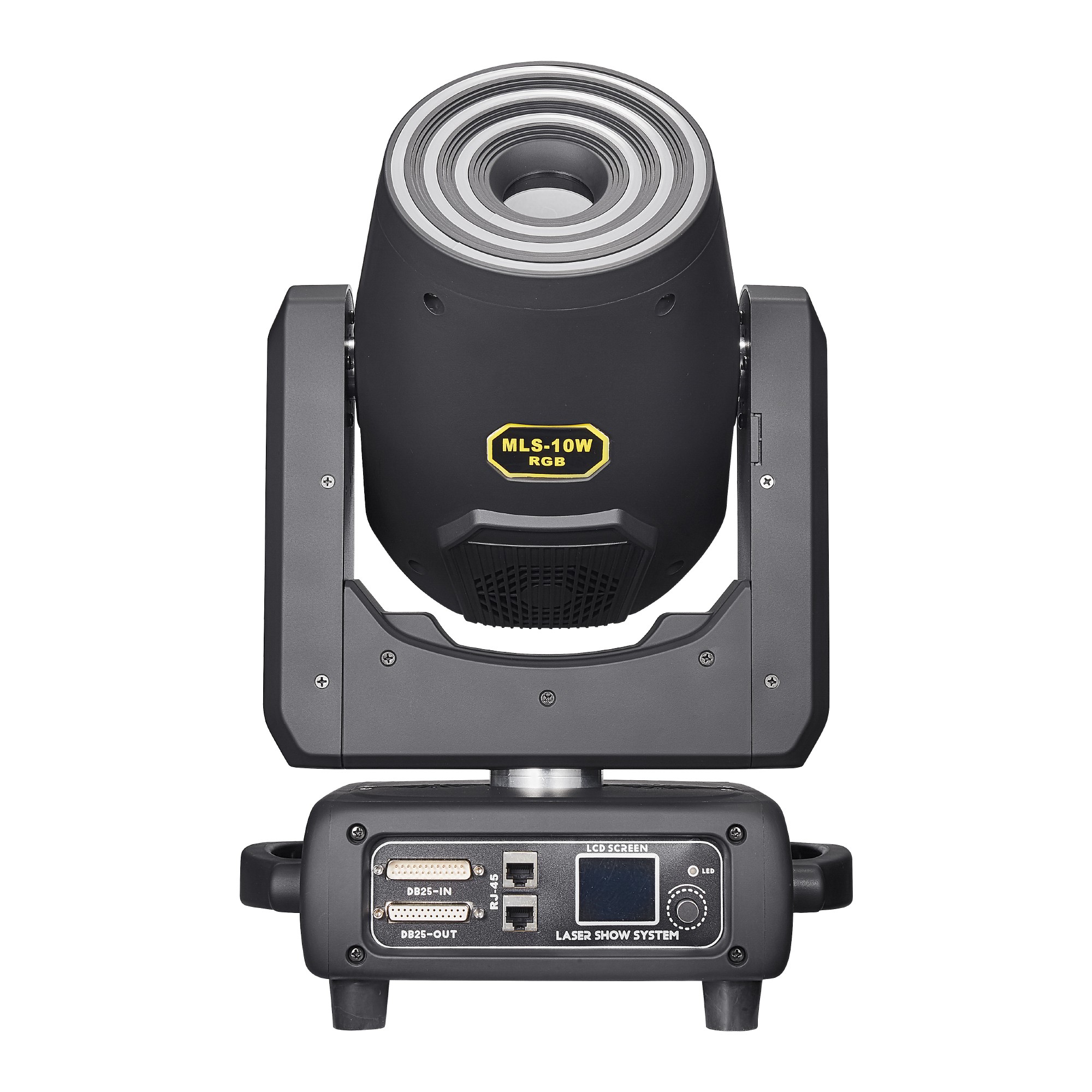

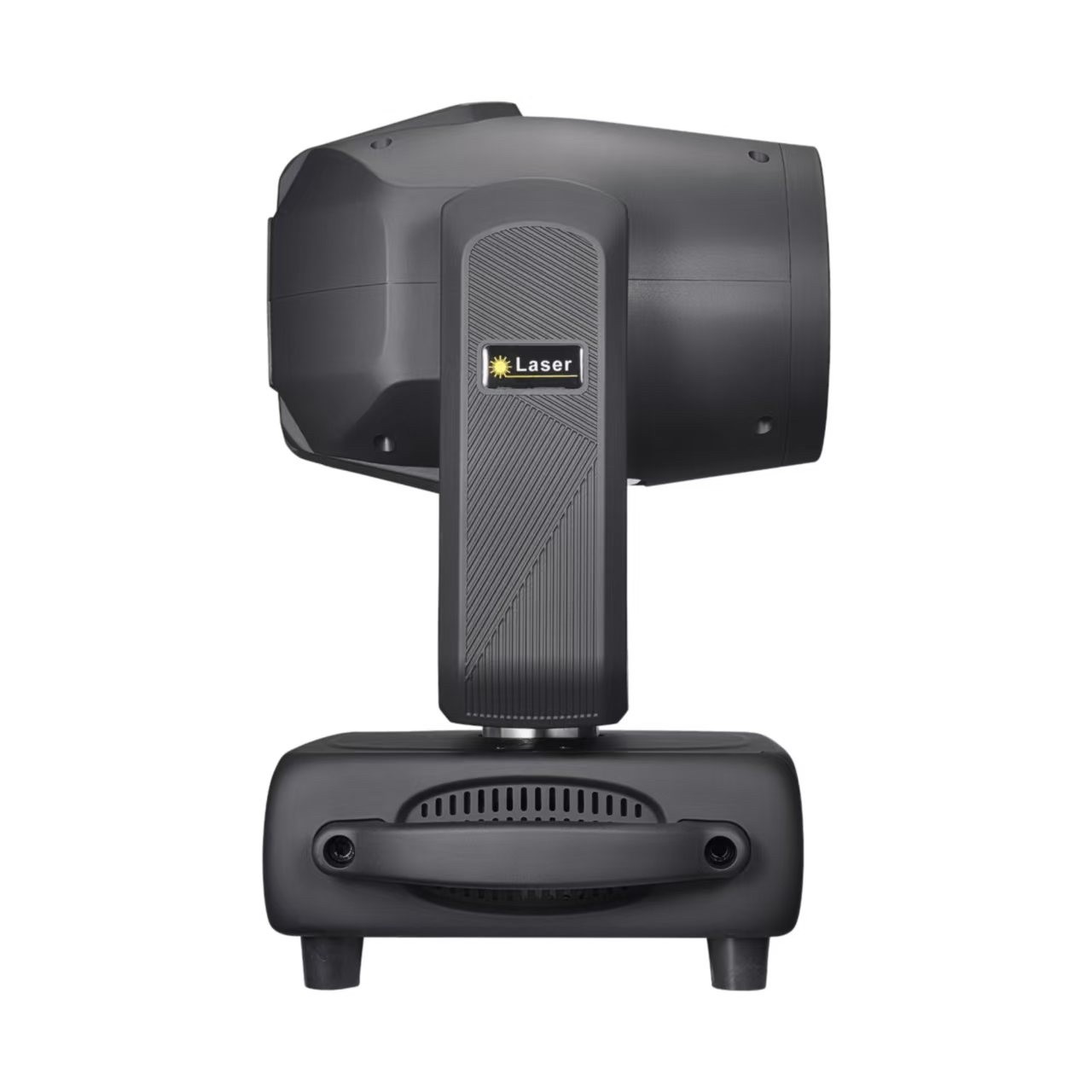

10W LASER MOVER WITH 3D LED RING

10W RGB 3IN1 LASER MOVER WITH LED RING

Rated voltage: AC110-220V

Shaking head laser+LED aperture

Rated frequency: 50-60Hz

Rated power: 300W

Laser color: RGB full-color

Laser power: RGB 10W/RGB 5W

Laser light source: R3w/638nm G3w/525nm B4w/447nm/（5W-R1，G1，B3）

Laser pattern: 256 laser animation patterns

Modulation signal: TTL modulation (analog modulation)

Scanning system: galvanometer scanning 30KPPS

Scanning angle: plus or minus 20 degrees

Stepper motor: 2 two-phase 57 motors

Horizontal: 540 degrees Vertical: 270 degrees

LED dyeing configuration: Three layer wheat jazz light strip

Control method: DMX512， Voice control, self-propelled, computer ILDA interface, Ethernet Art Net,

Control channel: 20/25 channels

DMX special effects: single pattern mode, with functions such as pen breakage, flicker, rotation, movement, scrolling, segmentation, gradient drawing, color change, and resizing.

Function: Can be controlled by laser software such as pangolin QSFB3/FB4 or Phoenix.

The ILDA control adopts an automatic electronic transfer switch, which has scanning system error protection and laser shutdown protection.

Instructions for use: The ambient temperature should be controlled between 0~35 ℃. A dry and dust-free environment can reduce laser power attenuation and extend the lifespan of the lamp

Suitable venues: nightclubs, bars, nightclubs, concerts, advertising promotions, etc

Cooling system: fan forced cooling of Shaking head laser+LED dye light

Bare lamp size: 29 * 24 * 45cm

Net weight: 10kg

Packaging size: 50 * 35 * 37cm

Gross weight: 12kg
